Industrial Sewing of a Leatherette Cushion Pad for a Horse Trailer

Project description:

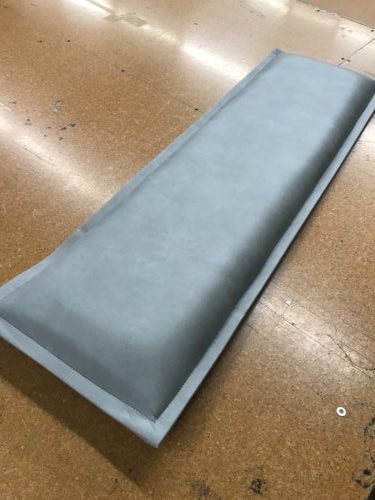

Cushion Pad

We were recently contracted by a manufacturer of trailers to fabricate a custom cushion used on one of their horse trailer lines. They supplied us with specifications and an engineering drawing which called out dimensions of 45” in length, 14” in width, and 2.5” thick, and required an embossed corporate logo.

To fabricate a truly durable cushion required the use of robust materials, the cushion was built on a corrugated plastic base; with poly foam padding covered with expanded vinyl leatherette. Using our Gerber computerized cutter, 10kw RF bar sealer, and Adler 267 single needle sewing machine, all 100 of the required orders were completed quickly, and to a high level of quality.

To learn more about this project, or the processes used to fabricate it, see the table below or contact us directly.

Request for Quote >>

Highlights of this Contract Industrial Sewing Project

Product Description
This Cushion Pad is used on a Trailer with Corporation Logo Embossed
Industrial Sewing Capabilities Applied/Processes
Primary:
Industrial Sewing
Secondary:
Industrial Cutting
Industrial Sealer
Equipment Used to Manufacture Part
Gerber Computerized Cutter
10kw RF Bar Sealer
Adler 267 Single Needle
Overall Part Dimensions
2.5” x 14” x 45”
Tightest Tolerances
±.15”
Material Used
Expanded Vinyl Leatherette
Poly Foam
Corrugated Plastic
Industry for Use
Trailer Manufacturing
Volume
100pcs
Standards Met
Customer Specifications using Customer Supplied Drawings
Product Name
Cushion Pad
