Industrial Sewing of a Polyester Equipment Cover for Aviation Equipment
Project description:

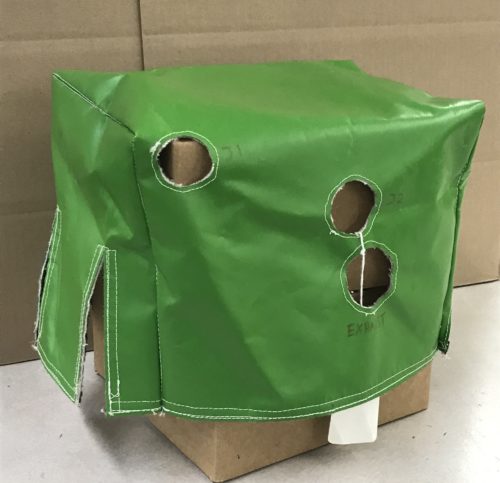

At John Boyt Industrial Sewing, we combine advanced sewing technology with cutting edge materials to fabricate products for a wide range of applications. The project highlighted here was designed, engineered, and fabricated by us for the specific needs of an aviation equipment manufacturer. They required an equipment shroud that was tough and light, and would provide their equipment with protection from extreme cold, and be easy to install. To meet these requirements we selected vinyl coated polyester, and lined it with a Nomex felt insulator. Once the cover is installed it is fastened with hook and loop fasters.
Forming of the raw material was performed on our Gerber computerized cutter, a traveling head press, and our hot knife cutter, the components were then dimensionally inspected before being sewn together on our Adler 267 single needle sewing machine. Measuring 12″ x 14″ x 10″, the 25 finished pieces received continuous in-process inspection as well as a final inspection.
For more information on this project, see the table below or contact us directly.
Highlights of this Polyester Industrial Sewing Project:
- Product Description
- This Equipment Cover protects from extreme cold, and is easy to install.
- Industrial Sewing Capabilities Applied/Processes
- Primary:
Design/Engineer
Industrial Sewing - Secondary:
Industrial Cutting
- Primary:
- Equipment Used to Manufacture Part
- Gerber Computerized Cutter
Traveling Head Press - Hot Knife Cutter
Adler 267 Single Needle
- Gerber Computerized Cutter
- Overall Part Dimensions
- 12″ x 14″ x 10″
- Material Used
- Vinyl Coated Polyester
Nomex Felt
Hook & Loop
- In process testing/inspection performed
- Continuous In Process Inspection and Final Inspect
- Industry for Use
- Aviation Equipment Manufacturing
- Volume
- 25pcs
- Delivery/Turnaround Time
- 1 Week
- Standards Met
- Customer Specifications
- Product Name
- Equipment Shroud
